Descrizione

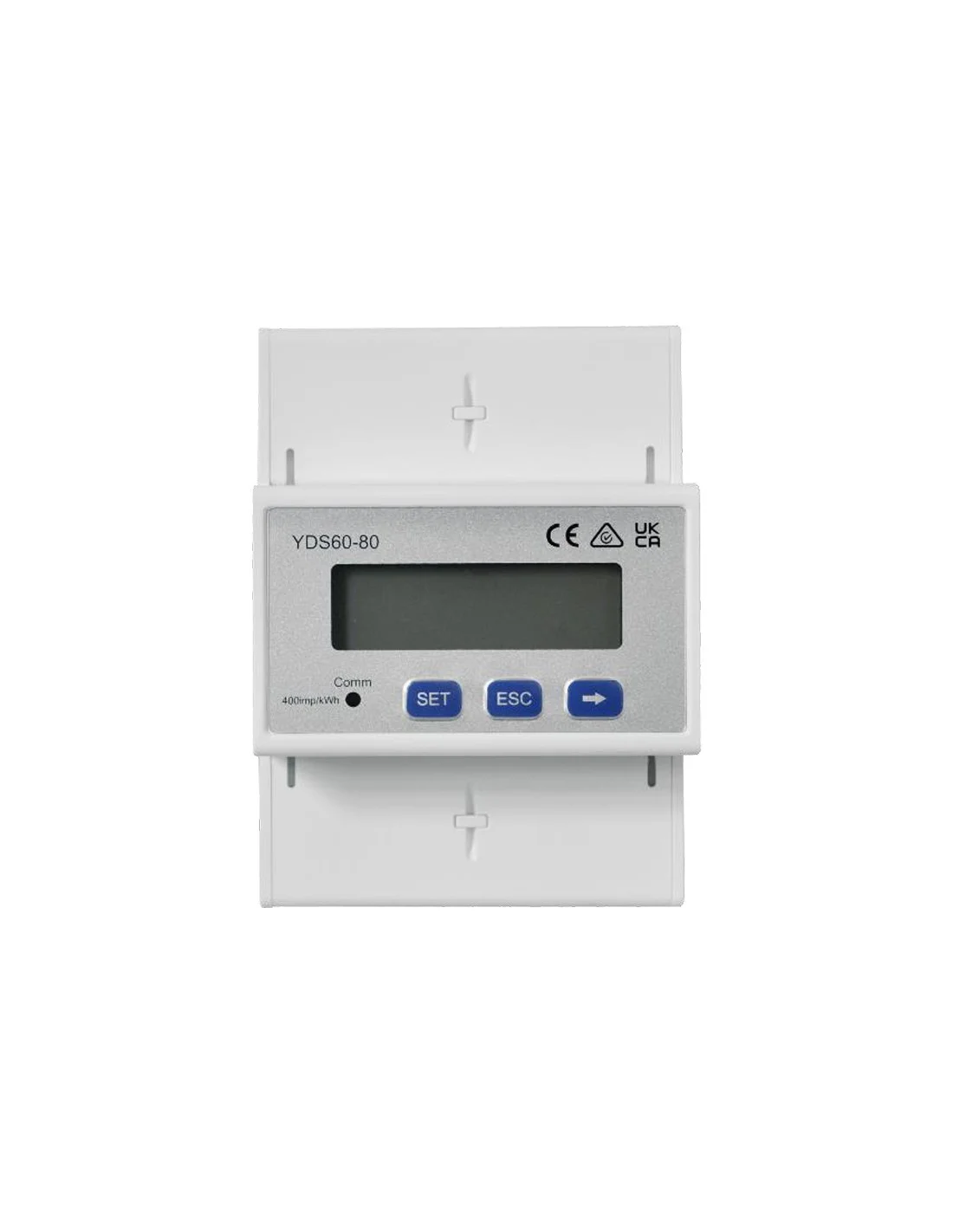

Meter trifase SmartPower Sensor 80A con guida DIN Huawei per inverter MB0
Caratteristiche principali
- Misurazione accurata (classe 1);
- Configurazione semplice grazie al suo display LCD;
- Massima efficienza con un assorbimento totale ≤ 1,5W.
Caratteristiche tecniche
| Power Supply | |
| Power grid type | 3P4W/3P3W |
| Input voltage (line voltage) | 90 ~ 500 Vac |
| Power consumption | ≤ 1.5 W |
| Measurement Range | |
| Line voltage | 90 Vac ~ 1000 Vac (> 500 with external PT 1) |
| Phase voltage | 52~577 Vac |
| Current | 0 ~ 80 A(>80 with external CT 2) |
| Measurement Accuracy | |
| Voltage / Current | ±0.5 % |
| Power / Energy | ±1 % |
| Frequency | ±0.01 Hz |
| Communication | |
| Interface | RS485 |
| Baud rate | 4800/9600/19200/115200 (Default 9600bps) |
| Communication protocol | Modbus-RTU |
| Environment | |
| Operating temperature range | -25 ℃ ~ 60 ℃ |
| Storage temperature range | -40 ℃ ~ 70 ℃ |
| Operating humidity | EN 55022 Classe B |
| General Data | |
| Dimension (H x W x D) | 100 x 72 x 80 mm |
| Mounting type | DIN35 Rail |
| Weight (including cables) | < 0.5 kg |
| Accessories | RS485 Cable (10 m) |
